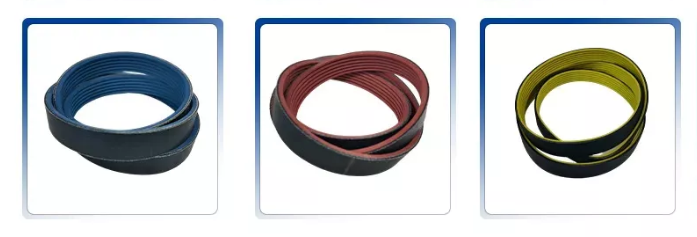

Choosing the correct multi-rib belt is important for reliable automotive accessory drive performance. Among common specifications, 5PK, 6PK and 7PK belts are frequently used in different engine and vehicle applications.
Although these belt types look similar, the rib count, belt dimensions, length, pulley configuration and application requirements are not necessarily interchangeable.
This guide explains the differences between 5PK vs 6PK vs 7PK belts, how to identify the correct specification, and what buyers should consider when sourcing automotive PK belts.
The term PK belt generally refers to a metric multi-rib belt specification used for automotive accessory drive systems.
The number before “PK” indicates the approximate number of longitudinal ribs on the belt:
5PK = 5 ribs
6PK = 6 ribs
7PK = 7 ribs
The PK designation is therefore useful for identifying the belt profile and rib configuration. However, the PK number alone does not provide all the information needed to select a replacement belt.
For example, a 6PK belt can be available in different lengths, such as 6PK800, 6PK900 or other specifications.
The complete belt specification should be checked before ordering.
The most visible difference between these three belt specifications is the number of ribs.
Belt Type | Rib Count | Typical Consideration |
|---|---|---|
5PK Belt | 5 ribs | Applications using a 5-rib pulley system |
6PK Belt | 6 ribs | Common multi-rib automotive accessory drive applications |
7PK Belt | 7 ribs | Applications requiring a wider 7-rib configuration |
More ribs generally mean a different belt width and corresponding pulley configuration. However, buyers should not select a belt simply because it has a similar overall length.
Rib count, belt length, profile, width and pulley compatibility should be considered together.
A 5PK belt has five longitudinal ribs and is designed for accessory drive systems using a compatible five-rib pulley configuration.
Depending on the vehicle and engine design, it can be used for systems such as:
Alternator drive
Air conditioning compressor
Water pump drive
Power steering systems
Other engine accessories
For replacement purchasing, the original belt specification or vehicle application information should be checked.
For a 5PK automotive belt, buyers should confirm:
Rib count
Overall belt length
Belt profile
Material
Reinforcement structure
Pulley configuration
Vehicle or engine application
For bulk orders, providing an existing belt number or technical specification to the supplier can make product matching easier.
A 6PK belt uses six longitudinal ribs and is widely associated with automotive accessory drive systems.
The actual application depends on the vehicle, engine and pulley arrangement. A 6PK belt may be used to drive multiple accessories through a serpentine routing system.
Common application descriptions include:
6PK automotive belt
6PK serpentine belt
6PK drive belt
6PK EPDM belt
6PK reinforced belt
The length remains an important part of the specification. Therefore, a 6PK belt should not be ordered based on “6PK” alone.
For example, 6PK800 and 6PK1000 have the same rib count but different length specifications.
A 7PK belt has seven longitudinal ribs and is designed for compatible seven-rib pulley systems.
Compared with a 5PK or 6PK belt, the 7PK configuration provides a different rib arrangement and belt width.
Typical application descriptions include:
7PK automotive belt
7PK serpentine belt
7PK drive belt
7PK EPDM belt
7PK reinforced belt
For commercial vehicles and other demanding accessory drive systems, the material and reinforcement structure should also be considered alongside the belt size.
In general, 5PK, 6PK and 7PK belts should not be treated as interchangeable specifications.
A pulley designed for five ribs has a different rib configuration from one designed for six or seven ribs.
For example:
5PK → 5 ribs
6PK → 6 ribs
7PK → 7 ribs
Even if two belts have similar lengths, their rib counts and corresponding pulley configurations may be different.
Therefore, replacing a 6PK belt with a 7PK belt, for example, requires confirmation that the pulley system and complete belt specification are compatible.
For replacement parts, matching the original belt specification is generally the appropriate starting point.
One common mistake when purchasing multi-rib belts is focusing only on the PK number.
A complete PK belt size should normally be considered from several dimensions.
The first number identifies the number of ribs.
Examples:
5PK
6PK
7PK
8PK
10PK
The number after the PK designation commonly identifies the belt's nominal length according to the applicable belt specification.
For example:
6PK900
indicates a six-rib belt with a specified nominal length of approximately 900 mm.
The exact measurement method and tolerance should be confirmed with the supplier.
The rib profile must match the pulley system.
A belt with the correct rib count but an incompatible profile is not a suitable replacement.
Common automotive multi-rib belt materials include EPDM rubber and other rubber compounds selected for heat, wear and environmental resistance.
Some belts use reinforcement materials such as aramid fiber to support strength and dimensional stability.
Rib count also affects the general belt width.
A belt with more ribs normally has a wider ribbed section when the same profile is used.
For this reason:
5PK < 6PK < 7PK
in terms of rib count and corresponding ribbed width under the same profile system.
However, buyers should avoid using rib count alone to estimate the exact physical dimensions. The supplier should provide the relevant technical specifications or drawings when precise dimensions are required.
When replacing an existing belt, the easiest approach is to collect as much information as possible before ordering.
Look for a printed or embossed number on the belt.
Examples may include:
5PK800
6PK900
7PK1000
8PK1200
The marking can provide both rib count and length information.
If the belt marking is unclear, physically count the longitudinal ribs.
For example:
5 ribs → 5PK
6 ribs → 6PK
7 ribs → 7PK
Measure the existing belt if the original specification is unavailable.
For accurate replacement, measurement should follow the appropriate belt measurement method rather than simply measuring the outside edge.
Provide information such as:
Vehicle type
Engine model
Year, where relevant
Existing belt number
Accessory drive configuration
If the application requires a particular construction, specify whether you need:
EPDM rubber
Aramid fiber reinforcement
High-strength construction
Low-noise design
Other required specifications
Material selection is another useful long-tail topic for automotive belt buyers.
EPDM rubber is commonly used in automotive belts because of its resistance to heat, weathering and aging.
Some automotive belts also incorporate aramid fiber reinforcement to provide additional reinforcement within the belt structure.
For example:
5PK EPDM Belt
6PK EPDM Serpentine Belt
7PK Aramid Fiber Belt
6PK Reinforced Automotive Belt
The appropriate construction depends on the intended application and technical requirements.
Multi-rib belts can be used across different types of vehicles, but the actual belt specification must match the engine accessory drive system.
Passenger vehicles may use PK belts for accessory drive systems including alternators, air conditioning compressors and other engine accessories.
Commercial vehicles can place different operating demands on the accessory drive system due to longer operating hours, heavier loads and different engine configurations.
For these applications, buyers may pay particular attention to:
Belt durability
Heat resistance
Reinforcement
Dimensional stability
Correct length
Correct rib configuration
This makes accurate specification matching important when purchasing replacement belts in bulk.
Instead of choosing a belt based only on the number of ribs, buyers can use the following checklist.
Requirement | Information to Confirm |
|---|---|
Rib configuration | 5PK / 6PK / 7PK |
Length | Nominal belt length |
Profile | Compatible rib profile |
Application | Vehicle / engine / accessory system |
Material | EPDM or required rubber compound |
Reinforcement | Standard or aramid fiber |
Quantity | Trial order or bulk order |
Packaging | Individual or bulk packaging |
For aftermarket replacement parts, providing the original belt number + application information + required quantity gives the supplier a clearer basis for matching.
A 6PK belt is not fully identified simply by “6PK.” Length and profile are also important.
Two belts with similar lengths can have different rib counts and therefore different pulley compatibility.
The belt must correctly engage with the pulley grooves. Rib count and profile should correspond to the pulley system.
If the original belt number is available, it is useful reference information for confirming the replacement specification.
For B2B purchasing, a sample or initial test order can help confirm dimensions, fit and application before larger production quantities.
For distributors, wholesalers and aftermarket parts buyers, a clear specification helps reduce communication time.
A basic inquiry can include:
Product: 6PK Automotive Serpentine Belt
Specification: 6PK + required length
Material: EPDM Rubber
Reinforcement: Aramid Fiber, if required
Application: Automotive / Commercial Vehicle
Quantity: Required order quantity
Packaging: Required packaging method
The same format can be used for 5PK belts, 7PK belts and other PK belt specifications.
The primary difference is the number of longitudinal ribs: 5PK has five ribs, 6PK has six ribs and 7PK has seven ribs. Their complete dimensions and applications can also differ.
Not simply based on length. The rib count, profile, width and pulley configuration must be compatible with the vehicle's accessory drive system.
Check the original belt marking, count the ribs, confirm the belt length and verify the vehicle or engine application.
PK describes a multi-rib belt specification, while “serpentine belt” describes a common application and routing style. Many automotive serpentine belts use PK specifications.
Yes. EPDM rubber is commonly used in automotive multi-rib belt construction, depending on the specific product and supplier.
Yes. Some reinforced automotive PK belts use aramid fiber within their construction. The exact construction should be confirmed according to the product specification.
BENCPAUL provides automotive and commercial vehicle PK belts, including multiple rib-count specifications such as 5PK, 6PK and 7PK belts, as well as other multi-rib configurations.
For aftermarket distributors, wholesalers and parts buyers, belt specifications can be matched according to rib count, length, material, reinforcement and application requirements.
When requesting a quotation, buyers can provide the existing belt number, required specification, application and quantity to help confirm the appropriate product.
Contact BENCPAUL for automotive PK belt specifications and bulk supply inquiries.
