A truck's accessory drive system relies on belts to transfer engine power to components such as the alternator, water pump, air conditioning compressor, and other engine accessories.

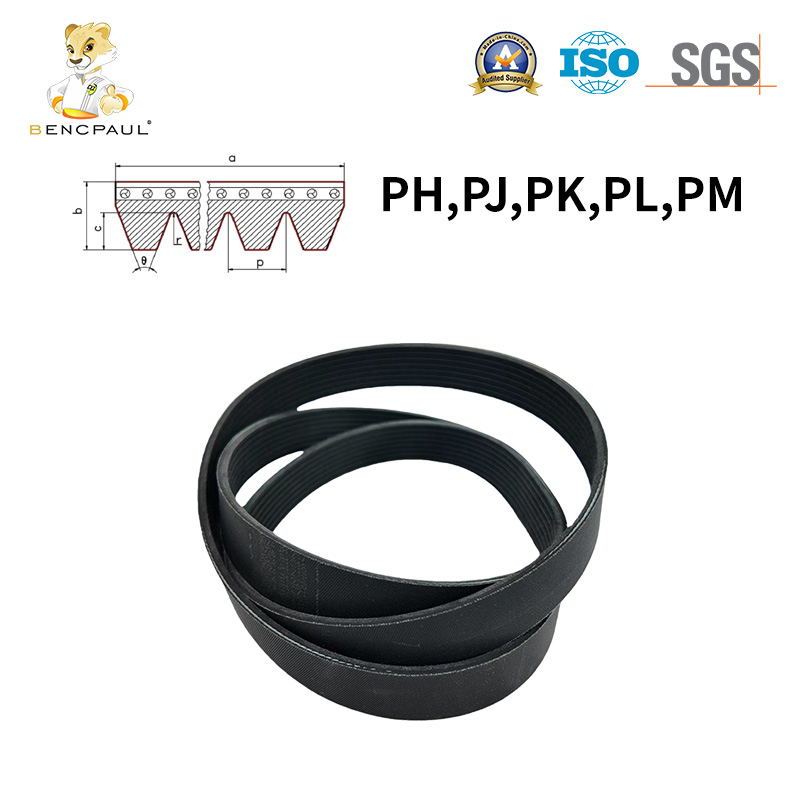

A truck PK belt is a multi-ribbed belt designed for applications where reliable power transmission and stable belt movement are required. Compared with traditional V-belts, the multiple longitudinal ribs provide a larger contact area while allowing the belt to work around relatively small pulleys.
For trucks and other commercial vehicles, selecting the correct belt specification is important because belt size, rib profile, material, and operating conditions all affect compatibility.
A PK belt is a type of multi-ribbed drive belt.
The letter "P" is commonly used in automotive belt profiles, while "K" indicates the rib pitch/profile family. The belt contains several longitudinal ribs that run continuously along its length.
When installed on a matching pulley system, these ribs provide contact between the belt and pulley grooves.
Depending on the vehicle design, a PK belt may drive several accessories through a single belt system.
Truck engines can have multiple belt-driven accessories operating at the same time.
A multi-rib belt allows several accessories to be driven through a relatively compact belt arrangement.
Typical applications may include:
Alternators
Water pumps
Air conditioning compressors
Power steering systems
Other engine-mounted accessories
The actual application varies according to the engine and vehicle configuration.
For this reason, a truck PK belt should be selected according to the specific belt routing and pulley system rather than simply by the vehicle category.
The belt runs around one or more pulleys and tensioning components.
The longitudinal ribs engage with the grooves of the pulley. As the crankshaft pulley rotates, the belt transfers rotational power to the connected accessories.
A typical system may include:
Crankshaft pulley → tensioner → idler pulley → accessories → return to crankshaft
The exact routing depends on the engine design.
This means that belt length and rib count are only part of the identification process. The complete belt routing should also be considered when selecting a replacement.
PK belts are often identified using a combination of:
Rib count
Effective length
Profile
Material
Application
Reference number
For example, a designation such as 6PK1000 generally indicates a six-rib belt with a nominal effective length around 1000 mm.
However, the exact identification standard can vary between manufacturers and applications.
Always verify the manufacturer's specification and vehicle application before ordering a replacement belt.
The number before PK generally indicates the number of ribs.
For example:
4PK — 4 ribs
5PK — 5 ribs
6PK — 6 ribs
7PK — 7 ribs
8PK — 8 ribs
The number following PK normally relates to the belt length.
For example, a 6PK1000 belt is generally understood as a six-rib belt with a nominal length of approximately 1000 mm.
However, the complete specification should always be checked, because belt identification can vary by application.
EPDM is commonly used in modern automotive and truck belt applications because of its resistance to environmental conditions such as heat, moisture, and ozone.
An EPDM PK belt can be suitable for applications where the belt is exposed to:
Engine heat
Temperature changes
Moisture
Ozone
Continuous operating cycles
Material selection should still be based on the intended application and operating requirements.
Some PK belts use reinforcing materials such as aramid fiber to provide additional strength and dimensional stability.
Aramid fiber reinforcement can be used in applications where the belt is subjected to demanding load conditions.
Potential considerations include:
High tensile strength
Resistance to elongation
Stable belt dimensions
Suitability for demanding drive systems
The actual performance depends on the complete belt construction, including the rubber compound, reinforcement, rib design, and manufacturing process.
Both PK belts and traditional V-belts are used for power transmission, but their designs are different.
Feature | PK Belt | Traditional V-Belt |
|---|---|---|
Rib structure | Multiple longitudinal ribs | Usually one V-shaped belt section |
Typical application | Automotive accessory drives | Various mechanical drives |
Pulley design | Multi-groove pulley | V-groove pulley |
Flexibility | Suitable for serpentine routing | Depends on belt design |
Multiple accessories | Common in accessory drive systems | Application dependent |
The correct belt depends on the pulley and drive system.
A PK belt should not be substituted with a conventional V-belt simply because the dimensions appear similar.
Correct identification is more important than choosing a belt based only on size.
Count the longitudinal ribs on the existing belt.
A mismatch in rib count can prevent proper engagement with the pulley.
The effective length is one of the main specifications of a PK belt.
A belt that is too short or too long may create installation or tension problems.
If the existing belt has a reference number, record it before replacement.
This is often one of the easiest ways to identify a replacement.
Inspect the number and configuration of pulley grooves.
The belt profile must match the pulley.
Truck model information alone may not always be enough.
The engine model and accessory configuration can also affect the required belt.
A belt should normally be inspected as part of routine vehicle maintenance.
Possible signs of belt wear or damage include:
Cracks or surface deterioration
Missing or damaged ribs
Fraying
Unusual belt noise
Abnormal vibration
Visible belt damage
Incorrect belt tension
Belt slipping
A damaged belt should be inspected promptly to determine whether replacement is necessary.
Correct belt tension helps maintain proper contact between the belt and pulley.
If the belt is too loose, it may slip or produce noise.
If the belt is excessively tight, it can place additional load on belt-driven components.
Many modern truck accessory systems use an automatic tensioner, but the condition of the tensioner and pulleys should also be checked during belt replacement.
Replacing only the belt may not solve a problem caused by a worn pulley or tensioner.
When replacing a truck PK belt, it is useful to inspect the surrounding components at the same time.
Check:
Belt tensioner
Idler pulleys
Pulley grooves
Belt alignment
Bearing condition
Belt routing
Signs of oil or coolant contamination
If contamination is present, the source should be identified and corrected rather than simply installing another belt.
When sourcing a truck PK belt from a manufacturer or supplier, product information should be clear and traceable.
Useful information includes:
Belt profile
Rib count
Belt length
Material
Reinforcement type
Application
Reference information
Packaging specifications
For regular replacement requirements, consistent product specifications are particularly important.
BENCPAUL can provide PK belt solutions for truck and automotive applications according to available specifications and application requirements.
Yes, the same PK belt specification may be used across different vehicle or engine applications.
However, this does not mean that all trucks using the same engine require the same belt.
Accessory configuration, pulley arrangement, air conditioning systems, alternators, tensioners, and other components can affect the required belt length.
Therefore, vehicle and engine application should be checked before selecting a replacement.
If the existing belt is available, the simplest approach is to record its identification information.
You can provide:
Existing belt number + rib count + belt length + truck/engine model
Photos can also be useful, particularly when the belt marking is still visible.
If the original marking is unclear, measuring the belt and checking the pulley configuration can provide additional reference information.
A PK belt is commonly used in accessory drive systems to transfer engine rotation to components such as alternators, water pumps, and air conditioning compressors, depending on the vehicle design.
6PK generally indicates a belt with six longitudinal ribs and a PK profile.
EPDM describes the rubber compound commonly used in the belt, while aramid fiber refers to a reinforcement material. They describe different aspects of belt construction and can be combined in some belt designs.
Check the existing belt number, rib count, length, engine model, vehicle application, and pulley configuration.
Yes. PK belts are used in both automotive and truck applications, but the required specification depends on the individual drive system.
Replacement intervals vary by vehicle, belt specification, operating conditions, and maintenance recommendations. Regular visual inspection is also important.
A truck PK belt is an important component of many engine accessory drive systems. Its multi-rib construction allows it to transfer power through compact pulley arrangements while supporting multiple accessories.
When selecting a replacement, pay attention to rib count, belt length, profile, material, reinforcement, pulley configuration, and engine application.
For demanding truck applications, choosing the correct belt specification is more important than selecting a product based only on appearance or dimensions.
BENCPAUL supplies truck and automotive belt products, including PK belts, with available specifications such as EPDM and aramid fiber reinforced constructions.
